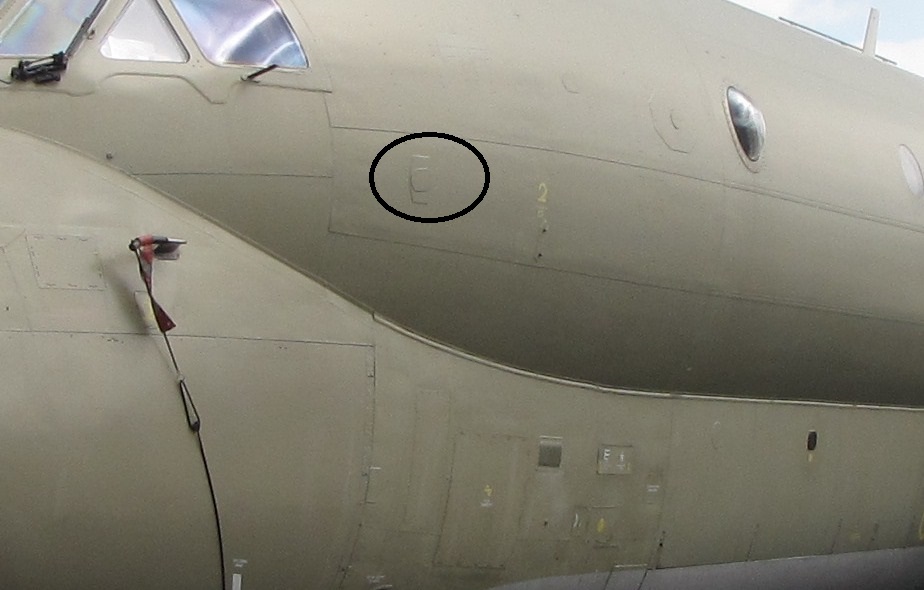

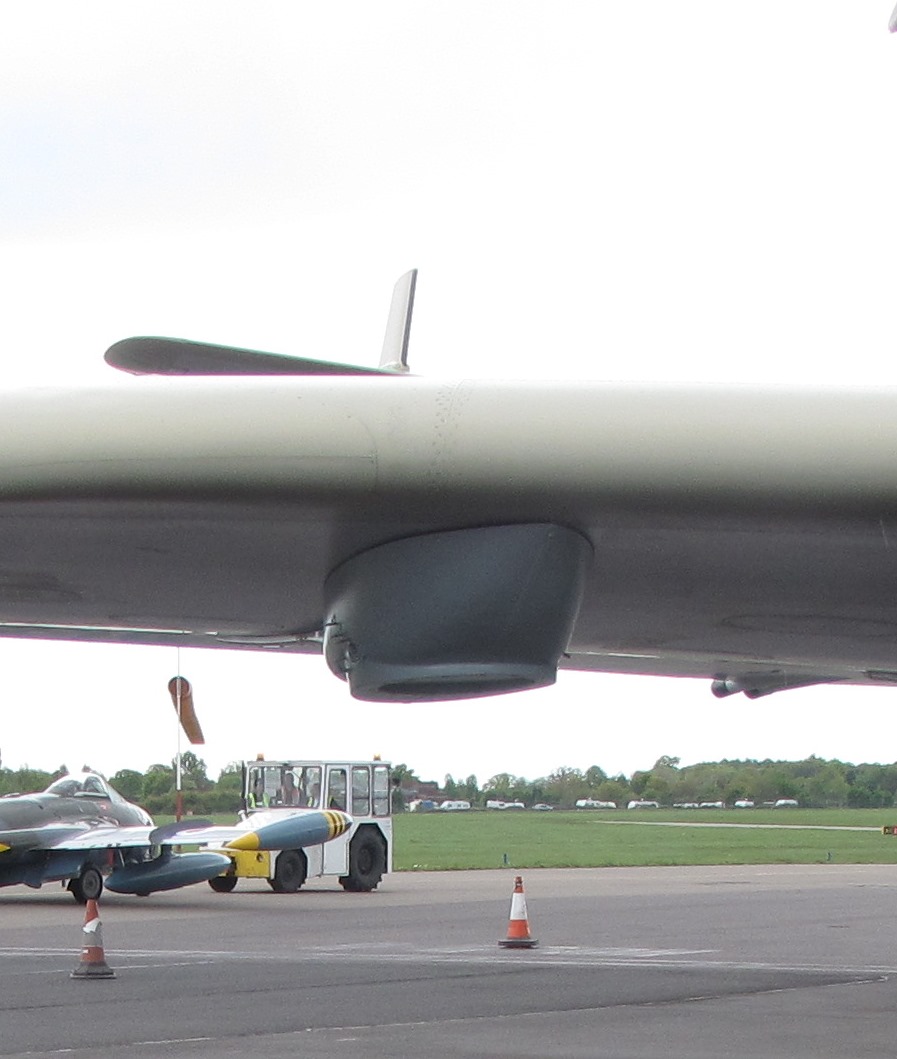

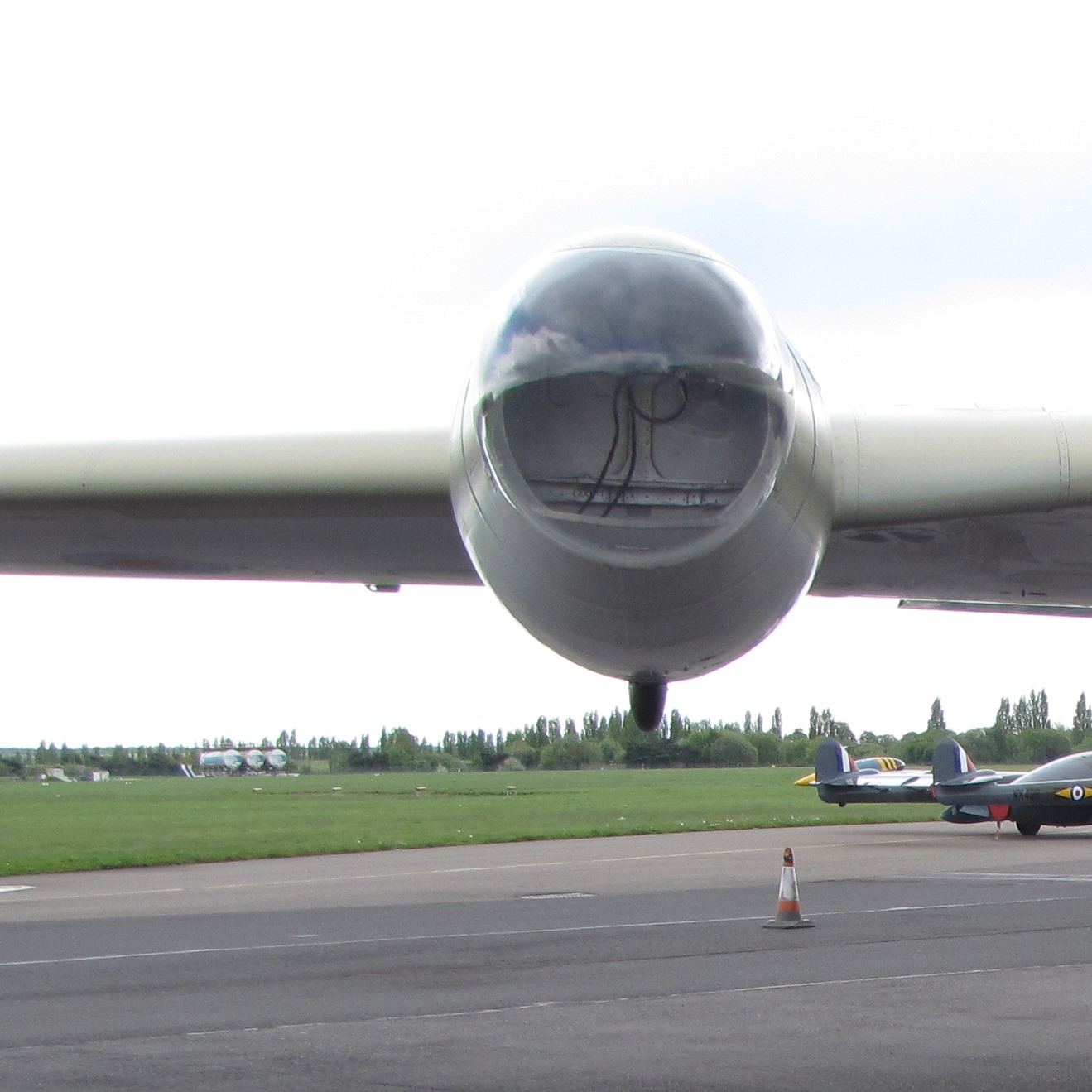

Peter Pingram Wescam X15 base This is the Wescam X15 base. Iv'e included a picture I took at Waddington of one on a Nimrod wing. 0 Wescam X15 This is the Wescam X15 base. Iv'e included a picture I took at Waddington of one on a Nimrod wing. 0 The search light The search light was unfortunately not refitted after maintenance. It was a carbon arc device and extremely powerful. 1 Autoycus position when fitted This is a picture of the position of the Autolycus which was fitted in early days 0 VHF- UHF control panels. The two overhead UHF / VHF controllers were removed. 0 Pilots clocks Both pilots clocks -- top of instrument panels -- were removed. 0 The Autopilot controller In the cockpit. The Autopilot controller was removed. I did take a picture looking down on the controller hoping that some clever person could superimpose it on to a suitable bit of aluminium 1 fuel tank indicators No 7 port and stabd There was a note on fuel tank indicators No 7 port and stabd. saying "Do not refuel limiting log.refers" 0 Weapons selection/delivery system ? This unit was part of the weapons selection/delivery system I think. It is on that panel that makes weapons selection. This is one of two or three parts I just can't recall so we will have to study the aircraft publications. The last time I saw those they were in the office upstairs. 0 Routine Navigators panel 0 This is the Routine Dynamic Display (RDD) This is the Routine Dynamic Display (RDD), it was removed about a year after the arrival date. 0 Acoustic position with the Wescam MX 15 screens in place. This shows the Acoustic position with the Wescam MX 15 screens in place. The Wescam turret under the Stbd wing was removed before delivery, the base plate is still on the wing. 1 1/2
